 RR Shock Mount Broken
 New Topic  Reply to Topic
 Printer Friendly
AuthorPrevious Topic Topic Next Topic

p.bateman
Starting Member

USA
17 Posts

Posted - 15 Oct 2016 :  22:24:12 Show Profile Reply with Quote
I recently discovered the cause of my significant suspension clunk - the right rear shock absorber has busted through the top of the tower and is banging around (a bad repair weld broke). The left looks ready to go soon as well.

What is the 'proper' repair and are parts available?

melle
V4 Guru

United Kingdom
3830 Posts

Posted - 16 Oct 2016 :  17:36:06 Show Profile Reply with Quote
I recently did the left hand side on mine by welding in a section from a donor car: http://www.saab-v4.co.uk/speedball/topic.asp?topic_id=31068 The other side was bodged years ago using 2mm or so sheet.

www.saabv4.com
Go to Top of Page

p.bateman
Starting Member

USA
17 Posts

Posted - 18 Oct 2016 :  00:53:40 Show Profile Reply with Quote
Thanks - I'm not having much luck finding a donor car or parts. It is a shame that this failed as it is just the immediate area around the top of the shock, the rest of the tower is in fine shape.
Go to Top of Page

melle
V4 Guru

United Kingdom
3830 Posts

Posted - 18 Oct 2016 :  10:03:53 Show Profile Reply with Quote
I've seen large washers used for this repair. As said, I've knocked up the other side from sheet, solid enough but doesn't look pretty.

www.saabv4.com
Go to Top of Page

UK_Sub
V4 Guru

United Kingdom
2555 Posts

Posted - 18 Oct 2016 :  11:02:23 Show Profile Reply with Quote
Does the Swedish Saab Club do this panel?

Here's the bodywork section of the Club Shop...
https://svenskasaabklubben.nordicshops.com/category.html/kaross-92-96?Pagenum=1
Go to Top of Page

p.bateman
Starting Member

USA
17 Posts

Posted - 18 Oct 2016 :  14:45:18 Show Profile Reply with Quote

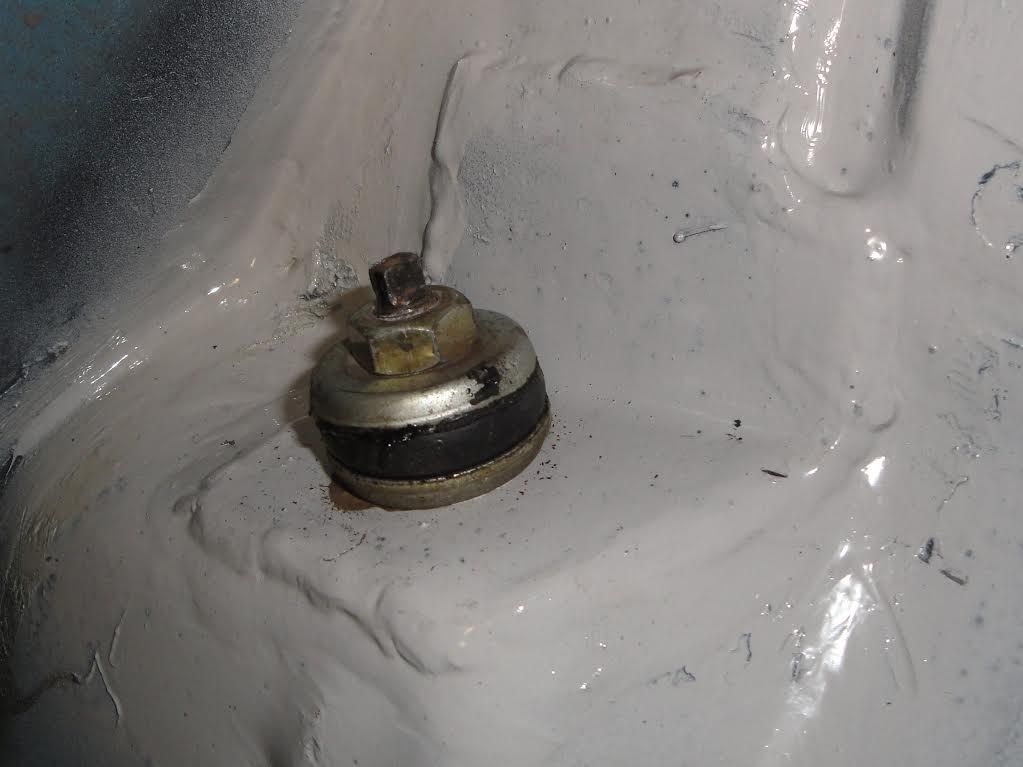

I've been in touch with a few local people and it looks like I can cut out the spot and weld in a patch. Then weld in an 'L' piece over it.

Like this:


Edited by - p.bateman on 18 Oct 2016 14:49:58
Go to Top of Page

Mr Burrrrrrrrrrt
V4 Fanatic

United Kingdom
344 Posts

Posted - 19 Oct 2016 :  11:34:59 Show Profile Reply with Quote
As long as you use nice thick steel, I don't see a problem with that.
Go to Top of Page

melle
V4 Guru

United Kingdom
3830 Posts

Posted - 19 Oct 2016 :  11:54:34 Show Profile Reply with Quote
I like the added L.

www.saabv4.com
Go to Top of Page

p.bateman
Starting Member

USA
17 Posts

Posted - 19 Oct 2016 :  14:16:06 Show Profile Reply with Quote
quote:
Originally posted by Mr Burrrrrrrrrrt
As long as you use nice thick steel, I don't see a problem with that.



What thickness would you consider adequate?

ETA - I was recommended 16ga steel from another source.

Edited by - p.bateman on 20 Oct 2016 04:06:16
Go to Top of Page

Mr Burrrrrrrrrrt
V4 Fanatic

United Kingdom
344 Posts

Posted - 20 Oct 2016 :  12:51:10 Show Profile Reply with Quote
quote:
Originally posted by p.bateman
quote:
Originally posted by Mr Burrrrrrrrrrt
As long as you use nice thick steel, I don't see a problem with that.



What thickness would you consider adequate?

ETA - I was recommended 16ga steel from another source.



Not sure about US steel thicknesses. we use mm here! I gather that's about 1.6mm. I'd use the thickest you can work with. It's over 20 years since I did that job on a 96. I probably used 2mm.
